MIMO Directional antennas
| |
|
 |
产品型号: GA-DP(3400-3600)-14-40

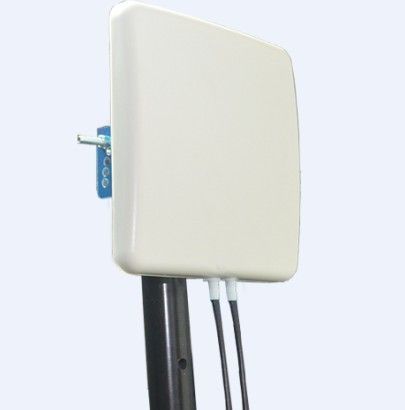

产 品 名: 3.5G MIMO Panel antenna 14dBi size 190x190x30mm
|
|
|
|
Product Name
|
3400-3600MHz dual-polarization MIMO panel antenna
|
|
Description
|
GA-DP(3400-3600)-14-40: The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
|
|
Electric Specification
|
|
Model NO
|
GA-DP(3400-3600)-14-40
|
|
Frequency Range-MHz
|
3400-3600
|
|
Bandwidth MHz
|
200
|
|
Gain-dBi
|
14
|
|
Horizontal Bear width °
|
40
|
|
Vertical Bear width °
|
36
|
|
F/B Ratio
|
≥17
|
|
VSWR
|
≤1.5
|
|
Input Impedance -Ω
|
50
|
|
Polarization
|
Vertical and horizontal
|
|
Maximum Power -W
|
20
|
|
Connector
|
2XN or SMA or others
|
|
Mechanical Specifications
|
|
Dimensions-mm
|
190X190X30
|
|
Weight-kg
|
0.40
|
|
