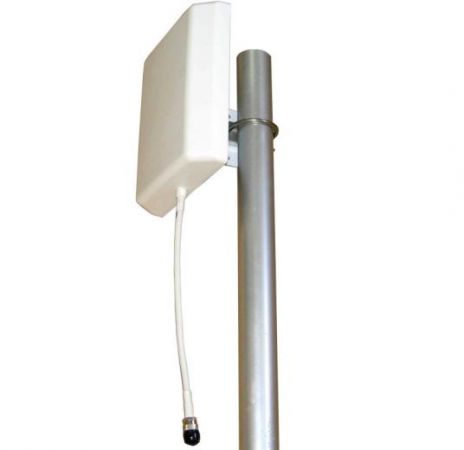

4G/LTE室外天线
| |
|
 |
产品型号: GA-4G-698-2700-8/10D
产 品 名: 698-2700 4G Panel Antenna线
|
|
|
|
Model NO
|
GA-4G-698-2700-8/10D
|
|
Frequency rang-MHz
|
806-960/1710-2700
|
|
Bandwidth -MHz
|
262/990
|
|
Gain -dBi
|
8/10
|
|
beam width - '
|
H:70/60 V:55/45
|
|
比VSWR
|
≤1.5
|
|
Input Impedance- ohm
|
50
|
|
Polarization
|
Vertical
|
|
Max power - W
|
50
|
|
Lightning protection
|
DC ground
|
|
Connector model
|
N Female
|
|
Mechanical Specifications
|
|
Size -mm
|
210x180x45
|
|
Antenna weight-kg
|
0.57
|
|
Working Temperature -°c
|
-40-60
|
|
Rated Wind Velocity-m/s
|
60
|
|
Radome color
|
white
|
|
Mounting way
|
mount on the wall or hold in the pole
|
|
Pole diameter（mm）
|
35-50
|
|
