4G/LTE室外天线
| |
|
 |
产品型号: GA-LTE-1800-2600-7
产 品 名: 1800-2600MHz LTE/4G antenna 7DBI
|
|
|
|
Product Name
|

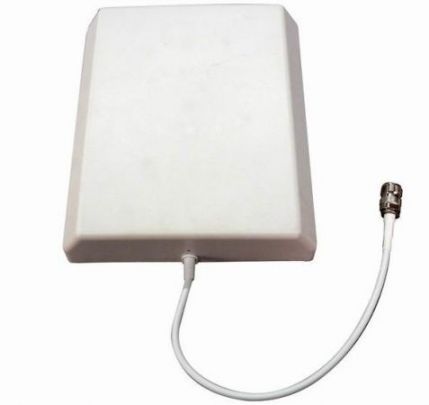

1800-2600MHZ panel antenna
|
|
Description
|
GA-LTE-1800-2600-7: The antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance ,high gain ,broad band ,big F/B ratio, strong structure ,own the good ability of antihunting , waterproof and anticorrosion; Small size ,easy installation ,the directional diagram will be unacted whether install on iron tower or roof.
|
|
Electric Specification
|
|
Model NO
|
GA-LTE-1800-2600-7
|
|
Frequency Range-MHz
|
1800-2600
|
|
Bandwidth-MHz
|
800
|
|
Gain-dBi
|
7
|
|
Horizontal Bear width-°
|
65°
|
|
Vertical Bear width -°
|
75
|
|
VSWR
|
≤1.5
|
|
Input Impedance -Ω
|
50
|
|
Polarization
|
vertical
|
|
Maximum Power -W
|
50
|
|
Connector
|
N female
|
|
Mechanical Specifications
|
|
Dimensions-mm
|
138*118*41
|
|
Weight-kg
|
0.3
|
|
