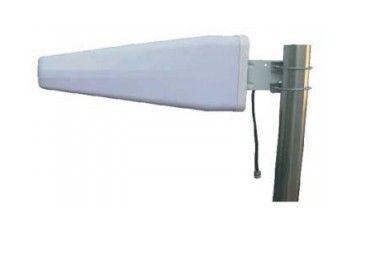

4G/LTE室外天线
| |
|
 |
产品型号: GA-LTE-YG-698-2700-9
产 品 名: 4G/LTE室外天线 9/11dBi
|
|
|
|
|
Applications
|
|
|
|
GSM/CDMA/PCS/3G/WLAN
698 to 2700MHz band
|
|
|
|
Features
|
|
|
|
Broadband, Low VSWR
Sealed with radome, strong protection
Supplied with mast down-tilt bracket
|
|
|
Specifications
|
|
Model
|
GA-LTE-YG-698-2700-9
|
|
Frequency Range-MHz
|
698-960
|
1710-2700
|
|
Vertical Beamwidth-degree
|
50
|
40
|
|
Horizontal Beamwidth-degree
|
65
|
50
|
|
F/B Ratio-dB
|
≥15
|
≥18
|
|
Gain-dBi
|
9
|
11
|
|
VSWR
|
≤1.5
|
|
Impedance-ohm
|
50
|
|
Intermodulation-dBm
|
≤-135dBc(2×10W)
|
|
Polarization
|
Vertical
|
|
Maximum Power-W
|
50
|
|
Connector
|
N type or customized
|
|
Dimensions-mm
|
445×265×65
|
|
Weight-Kg
|
0.6
|
|
Mounting Mast Diameter-mm
|
40-50
|
|
