GSM Antenna
| |
|
 |
产品型号: GA-GSM-05

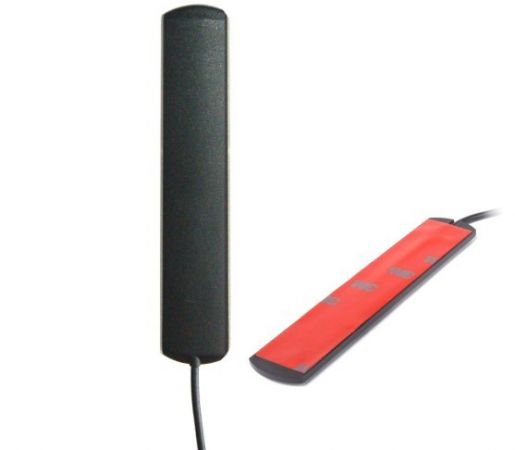

产 品 名: GSM Adhesive mount Antenna 3.5dBi
|
|
| Description: |
| |
| |
Suitable for 3g mobile,gsm,umts frequency
Frequency Range(MHz) 824-894/1710-1990
Bandwidth (MHz) 90/280
VSWR ≤1.5
Gain (dBi) 3.5
Max Input power (W) 60
Input Impedance (Ω) 50
Polarization Type Vertical
Antenna Length (mm) 115 x 22 x 4
Cable Length (mm) 2000,3000,5000 or other
Cable Type RG174
Connector Type SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Adhesive
Housing Black
Storage Temperature -45'C to +75'C
Operating Temperature -45'C to+75'C
|
|
