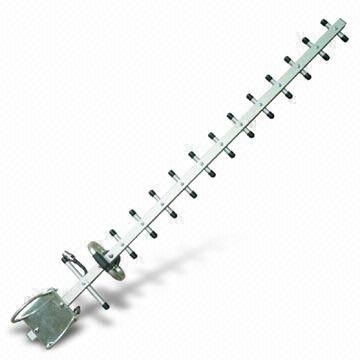

3G UMTS Antenna
| |
|
 |
产品型号: D1900Y18A18
产 品 名: 3G八木天线
|
|
|
| |
|
|
| |
- 3g UMTS Yagi Antenna, HSPDA Antenna, 1920 to 2170MHz, Gain 15DBI, 2.1GHz Application, 3G Wireless
|
| |
| |
- 3G UMTS/HSDPA Yagi antenna
- Item: D1900Y18A18
- Frequency range: 1920 to 2170MHz
- Gain: 18dBi
- Elements: 18
- V.S.W.R: ≤ 1.5
- Polarization: vertical or horizontal
- Horizontal: -3dB beamwidth 36-degree
- Vertical: -3dB Beamwidth 22-degree
- Impedance: 50 Ohms
- Front-to-back ratio: ≥ 18dB
- Maximum input power: 50W
- Connector type: N-F
- Lightning protection: direct ground
- Dimension: 710mm
- Weight: 1.5Kg
- Radiating element material: brass
- Operating temperature: -40 to +60 deg.C
|
|
|
|
