全向玻璃钢天线
| |
|
 |
产品型号: TQJ-824/896-10D
产 品 名: 全向玻璃钢天
|
|
|
|
Product Name
|

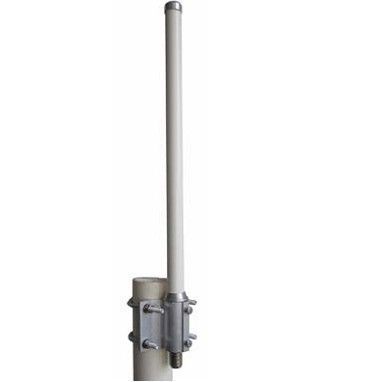

824-896GHz fiberglass antenna
|
|
Description
|
TQJ-824/896-10D: The fiberglass antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
|
|
Electric Specification
|
|
Model NO
|
TQJ-824/896-10D
|
|
Frequency Range-MHz
|
824~896
|
|
Bandwidth(MHz)
|
70
|
|
Gain-dBi
|
10
|
|
Horizontal Bear width°
|
360
|
|
Vertical Bear width °
|
18
|
|
VSWR
|
≤1.5
|
|
Input Impedance -Ω
|
50
|
|
Polarization
|
Vertical
|
|
Maximum Power -W
|
100
|
|
Connector
|
N-female
|
|
Mechanical Specifications
|
|
|
Φ35-1200
|
|
Weight-kg
|
0.4
|
|
