扇面天线
| |
|
 |
产品型号: GA-5150-5850-14-90
产 品 名: 5150-5850MHZ 14dBi mimo dual-polarization antenna
|
|
|
|
Product Name
|
5.8GHz panel double polarization antenna
|
|
Description
|

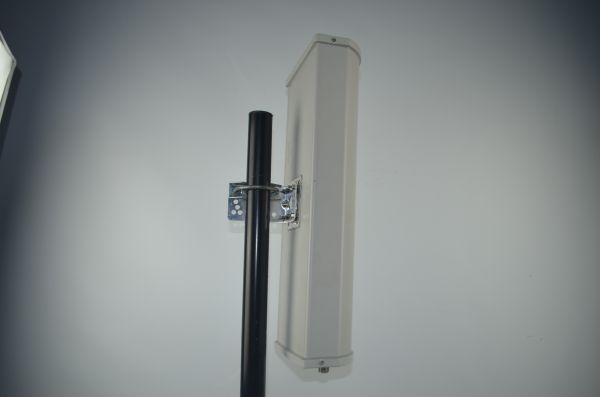

GA--5150-5850-14-90: The sector panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
|
|
Electric Specification
|
|
Model NO
|
GA--5150-5850-14-90
|
|
Frequency Range-MHz
|
5150～5850
|
|
Bandwidth－MHz
|
700
|
|
Gain-dBi
|
2X14-dBi
|
|
Horizontal Bear width－°
|
90
|
|
Vertical Bear width －°
|
15
|
|
F/B Ratio
|
≥23
|
|
VSWR
|
≤2
|
|
Input Impedance -Ω
|
50
|
|
Polarization
|
Vertical and horizontal
|
|
Maximum Power -W
|
100
|
|
Connector
|
2* N
|
|
Mechanical Specifications
|
|
Dimensions-mm
|
267*174*85
|
|
Weight-kg
|
1
|
|
