板状天线
| |
|
 |
产品型号: GA-2327D18W

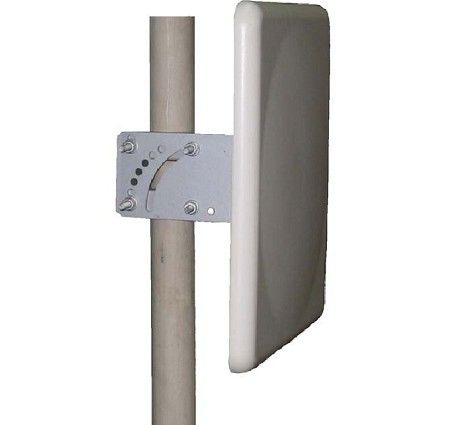

产 品 名: 2.3~2.7G Flat Panel Antenna 18dBi
|
|
|
|
Product Name
|
2400-2700MHz dual-polarization panel antenna
|
|
Description
|
GA-2327D18W : The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,
own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
|
|
Electric Specification
|
|
Model NO
|
GA-2327D18W
|
|
Frequency Range-MHz
|
2400-2700
|
|
Bandwidth－MHz
|
300
|
|
Gain-dBi
|
18
|
|
Horizontal Bear width－°
|
9
|
|
Vertical Bear width －°
|
9
|
|
F/B Ratio
|
≥30
|
|
VSWR
|
≤1.7
|
|
Input Impedance -Ω
|
50
|
|
Polarization
|
Vertical and horizontal
|
|
Maximum Power -W
|
20
|
|
Connector
|
N
|
|
Mechanical Specifications
|
|
Dimensions-mm
|
305*305*30
|
|
Weight-kg
|
1.5
|
|
