板状天线
| |
|
 |
产品型号: GA-1721D185S-65

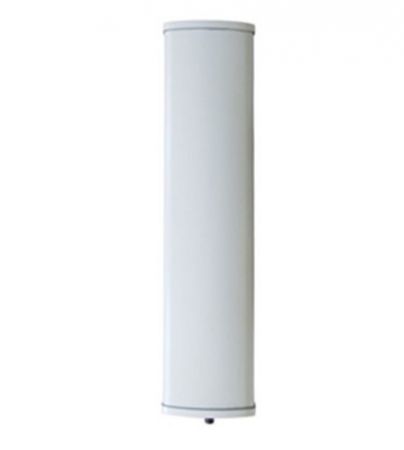

产 品 名: 3G Panel antenna 18dBi
|
|
| |
3G Panel Antenna
|
Electrical Specifications
|
|
Frequency Range
|
1710-2170MHz
|
|
VSWR
|
≤1.5
|
|
Input Impedance
|
50Ω
|
|
Gain
|
18dBi
|
|
Polarization
|
Vertical
|
|
Horizontal Plane ΘHP
|
65±5°
|
|
Vertical Plane ΘHP
|
6.5±1°
|
|
Beam Electrical Downtilt
|
0°
|
|
Front to Back Ratio
|
≥25dB
|
|
Maximum Input Power
|
300W
|
|
Connector Type
|
N- Female or7/16DIN- Female
|
|
Intermodulaton IM3
|
≤-107dBm
|
|
Lightning Protection
|
DC ground
|
|
Mechanical Specifications
|
|
Dimension
|
1320mm×180mm×80mm
|
|
Weight
|
5kg
|
|
Rated Wind Velocity
|
210km/h
|
|
Radome material
|
UV Protected ASA
|
|
Diameter of installation pole
|
Φ35～Φ50
|
|
Working Temperature
|
-40~+60℃
|
|
|
