GPS内置天线
| |
|
 |
产品型号: GA-GPS-15B

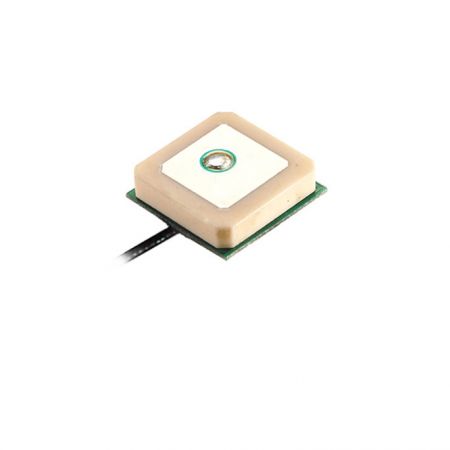

产 品 名: GPS Built-In Antenna
|
|
Product Description::
SPECIFICATION
Size: 15x15x7.5mm
Dieletric Antenna
Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA/Filter
LNA Gain(Without cable) 10~30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA
Mechanical
Cable RF1.13 or others
Connector IPEX / MMCX or others
Environmental
Working Temp -40'C~+85'C
Humidity 55%~75%RH
Waterproof IP67
|
