GPS有源天线
| |
|
 |

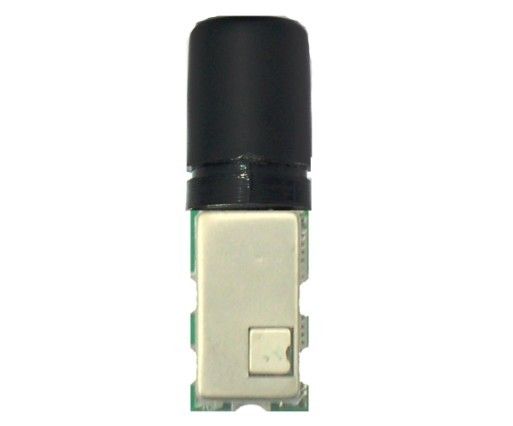

产品型号: GA-GPS-09
产 品 名: GPS Omni- directional Antenna
|
|
(i)Applications
PDA/Mobile Phone/Smart Phone
Automotive Industry
Navigation System
Aeroplane Servicing
Satellite
Positioning Device
(ii)Features
GPS Active Antenna
Ideal for tight integration
Comparable Sarantel Active Antenna Dimensions
SMT compatible
Small size
Internal and external mounting
Low voltage / Low current
High gain (28dB) typical
(iii)Antenna Element
Central Frequency 1575.42 MHz
Bandwidth 90MHz
Gain (Typical) 1 dBi
VSWR (max.) 2
Return Loss -10 dB (max.)
Polarization Linear
Pattern Omni-Directional
Impedance 50 Ω
(iv)LNA/Filter
LNA Gain (Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 10mA Max
(v)Mechanical
14.6 x 48.6 x 3.7mm
|
