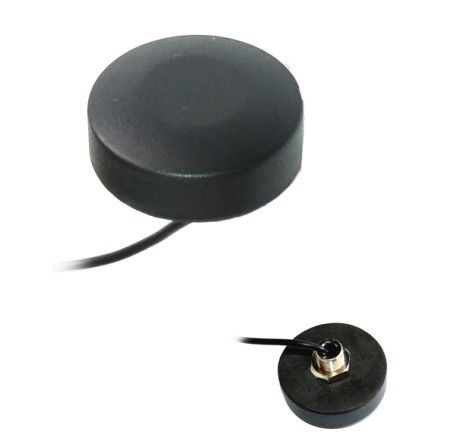

GPS有源天线
| |
|
 |
产品型号: GA-GPS-04
产 品 名: GPS Active Antenna
|
|
|
Product Description::
SPECIFICATION Size: D46x15mm Dieletric Antenna Center Frequency 1575.42 MHz±3 MHz V.S.W.R 1.5 : 1 Band Width ±5 MHz Impendence 50 ohm Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28±2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC current 5~15 mA
Cable RG174 5m / 3m / or others
Connector SMA / SMB / MCX / or others
Housing Black or others
Working Temp -40'C~+85'C
Humidity 55%~75%RH
Waterproof IP67
|
