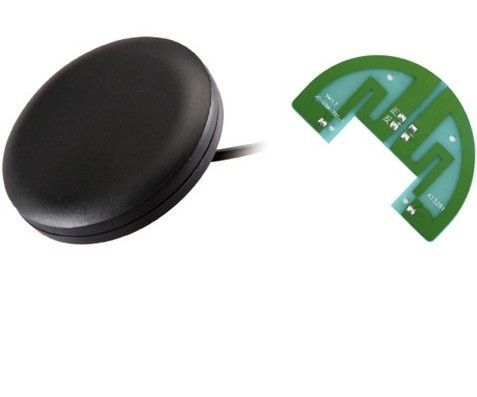

3G UMTS Antenna
Item No.: GA-GSM-11
Product: 3G Screw Antenna 2dBi

SIze:                                D65x14mm

Frequency                      824~894 MHz / 1710~1990 MHz
                                         880~960 MHz / 1710~1990 MHz,
                                         1920~2170MHz
V.S.W.R(5m)                  2.0 : 1

Band Width                   ±5MHz
Impendence                 50 ohm
Typical Gain                  2 dBi
Cable                             RG174 3m / 5m or others
Connector                     SMA / MCX or others
Working Temp              -40'C~+85'C
