wall mount antenna
|
 |
Item No.: D825I07W3I

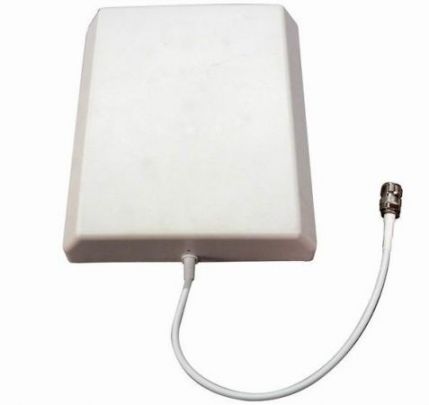

Product: Wall Mount Antenna
|
|
|
Indoor antenna, wall mount antenna, hanging on wall antenna
Freq. Range 800-960 MHz 1710-2500 MHz
Gain 7 dBi
Beam width—H-plane 70°
—E-plane 50°
F/B ratio >20 dB
V.S.W.R <= 1.5
Nominal Impedance 50 ohm
Polarization Vertical
Max Power 50 W
Connector N Female
Mechanical Specifications
Dimension 210x180x44 mm
Lightning protection DC grounded
Weight 0.5 Kg
Temperature range: -40 to 70 centigrade
|
