Sector Antenna
Item No.: TDJ-2400-16-H120

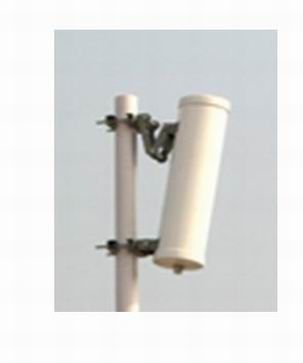

Product: 2.4G Sector antenna
2.4GHz 120º 16dBi Sector Antenna
Model TDJ-2400-16-H120
Freq. Range 2300-2700 MHz
Gain 16 dBi
Horizontal Beamwidth 120±5º
Vertical Beamwidth 9±0.5º
Beam Electrical Downtilt 0º
F/B Ratio ≥21dB
Intermodulaton IM3 ≤107dBm
VSWR ≤1.5
Impedance 50 Ω
Lightning Protection DC Ground
Polarization Vertical
Max. Power 200W
Connector N Female
Dimension 890x180x60 mm
Weight 5 kg
Rated Wind Velocity 60 m/s
Mounting Mast Diameter Φ50-110mm
Working Temperature -40- +60
